NexaPG

NexaPG is a full-stack PostgreSQL monitoring platform for multiple remote targets. It combines FastAPI, React, and PostgreSQL in a Docker Compose stack with RBAC, polling collectors, query insights, alerting, and target-owner email notifications.

Table of Contents

• Quick Deploy (Prebuilt Images)
• Prerequisites
• Make Commands
• Configuration Reference (.env)
• Core Functional Areas
• Service Information
• Target Owner Notifications
• API Overview
• API Error Format
• pg_stat_statements Requirement
• Reverse Proxy / SSL Guidance
• PostgreSQL Compatibility Smoke Test
• Troubleshooting
• Security Notes

Highlights

• Multi-target monitoring for remote PostgreSQL instances
• Optional one-click target onboarding for "all databases" discovery on an instance
• PostgreSQL compatibility support: 14, 15, 16, 17, 18
• JWT auth (access + refresh) and RBAC (admin, operator, viewer)
• Polling collector for metrics, locks, activity, and optional pg_stat_statements
• Target detail overview (instance, storage, replication, core performance metrics)
• Alerts system:
  • standard built-in alerts
  • custom SQL alerts (admin/operator)
  • warning + alert severities
  • real-time UI updates + toast notifications
• Target owners: alert emails are sent only to responsible users assigned to a target
• SMTP settings in admin UI (send-only) with test mail support
• Structured backend logs + audit logs

UI Preview

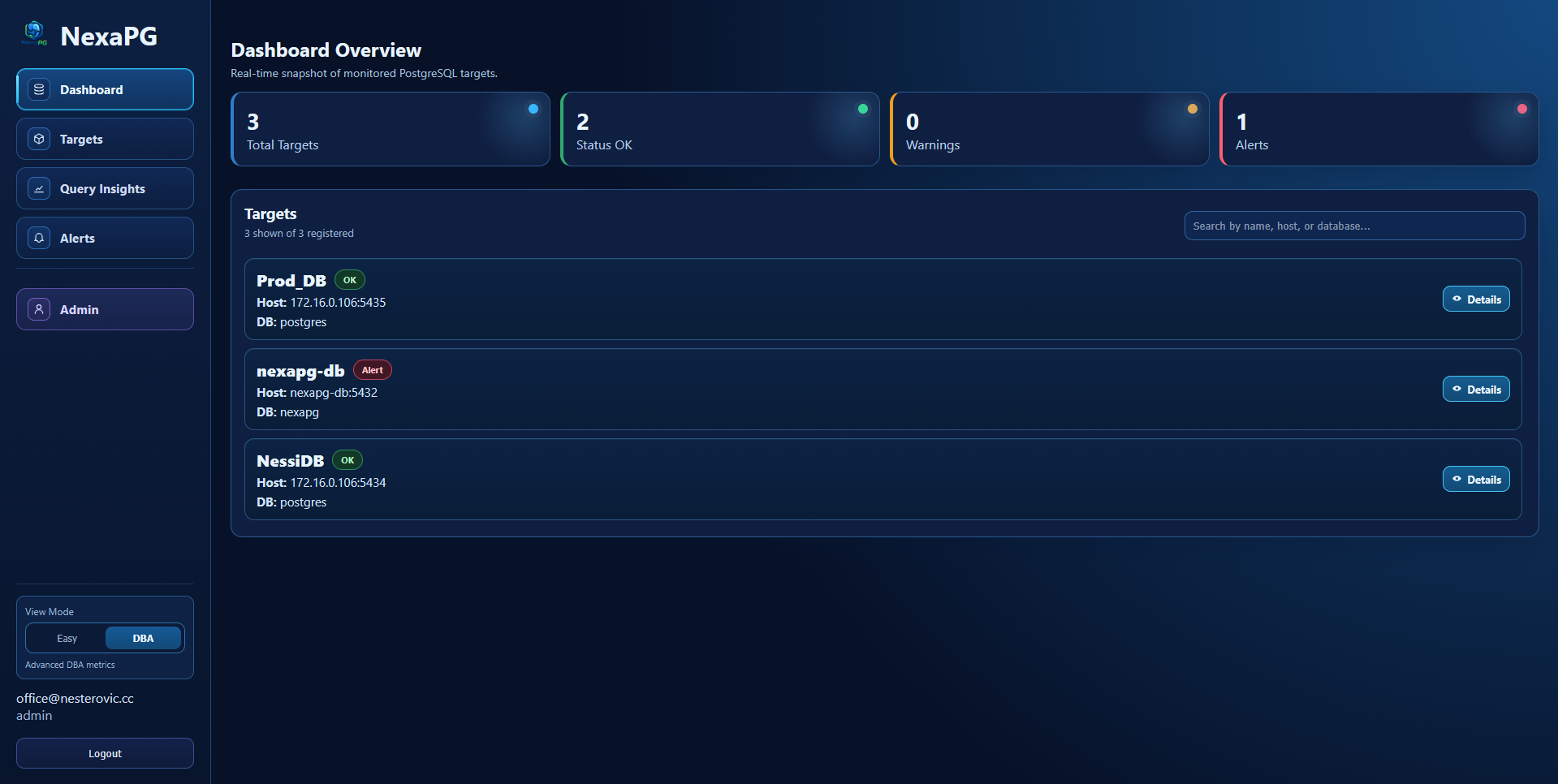

Dashboard

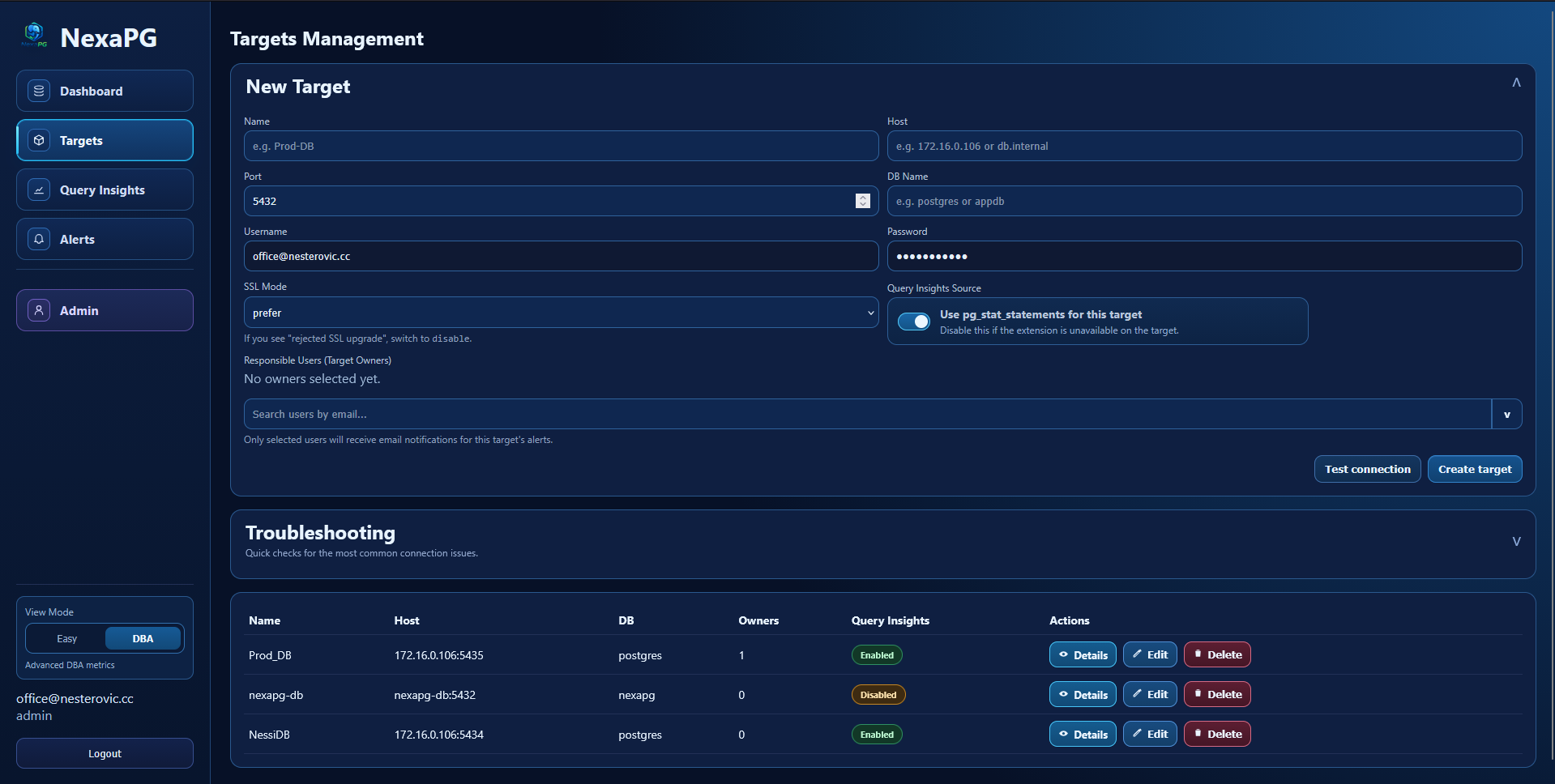

Targets Management

Query Insights

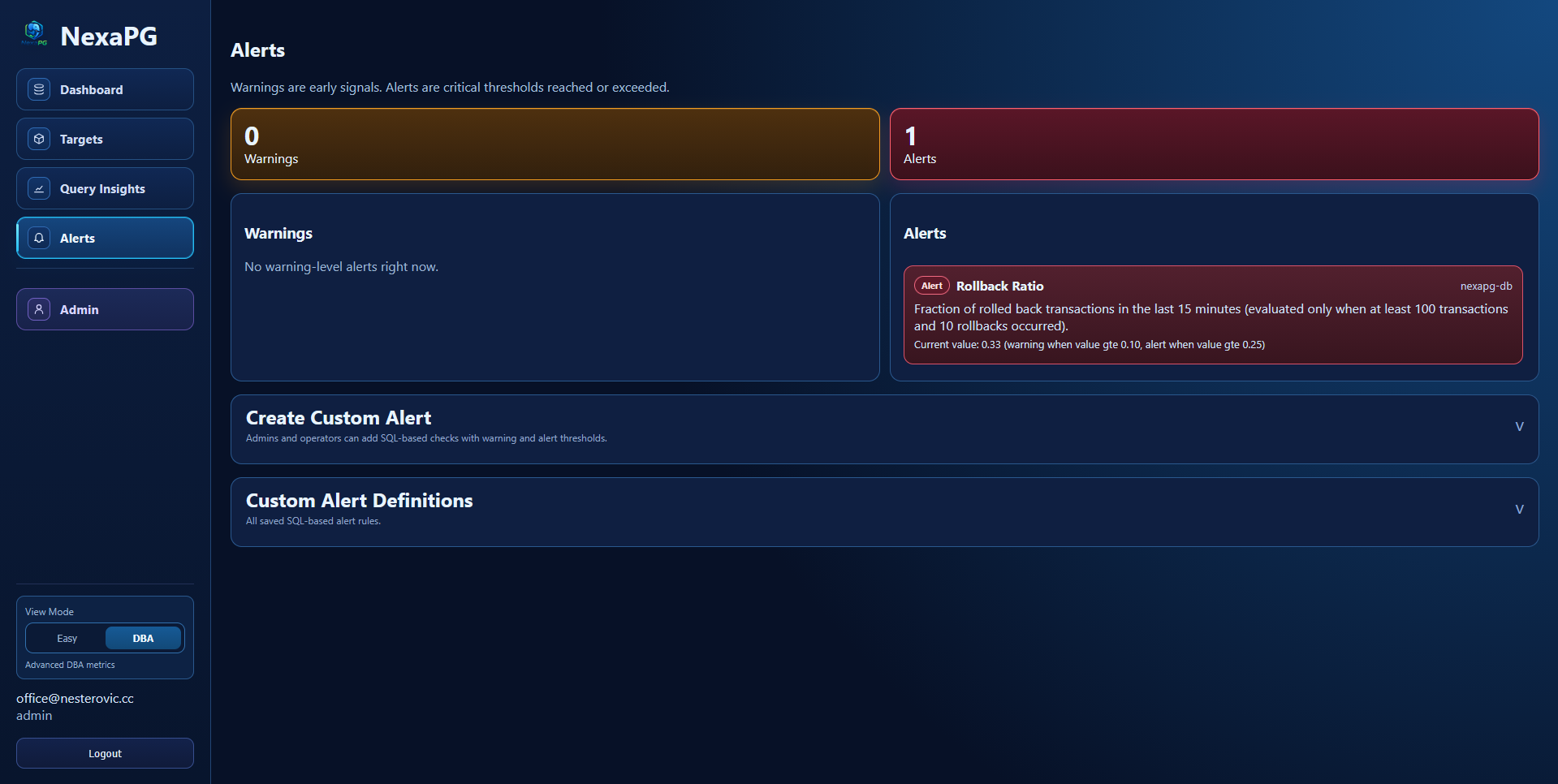

Alerts

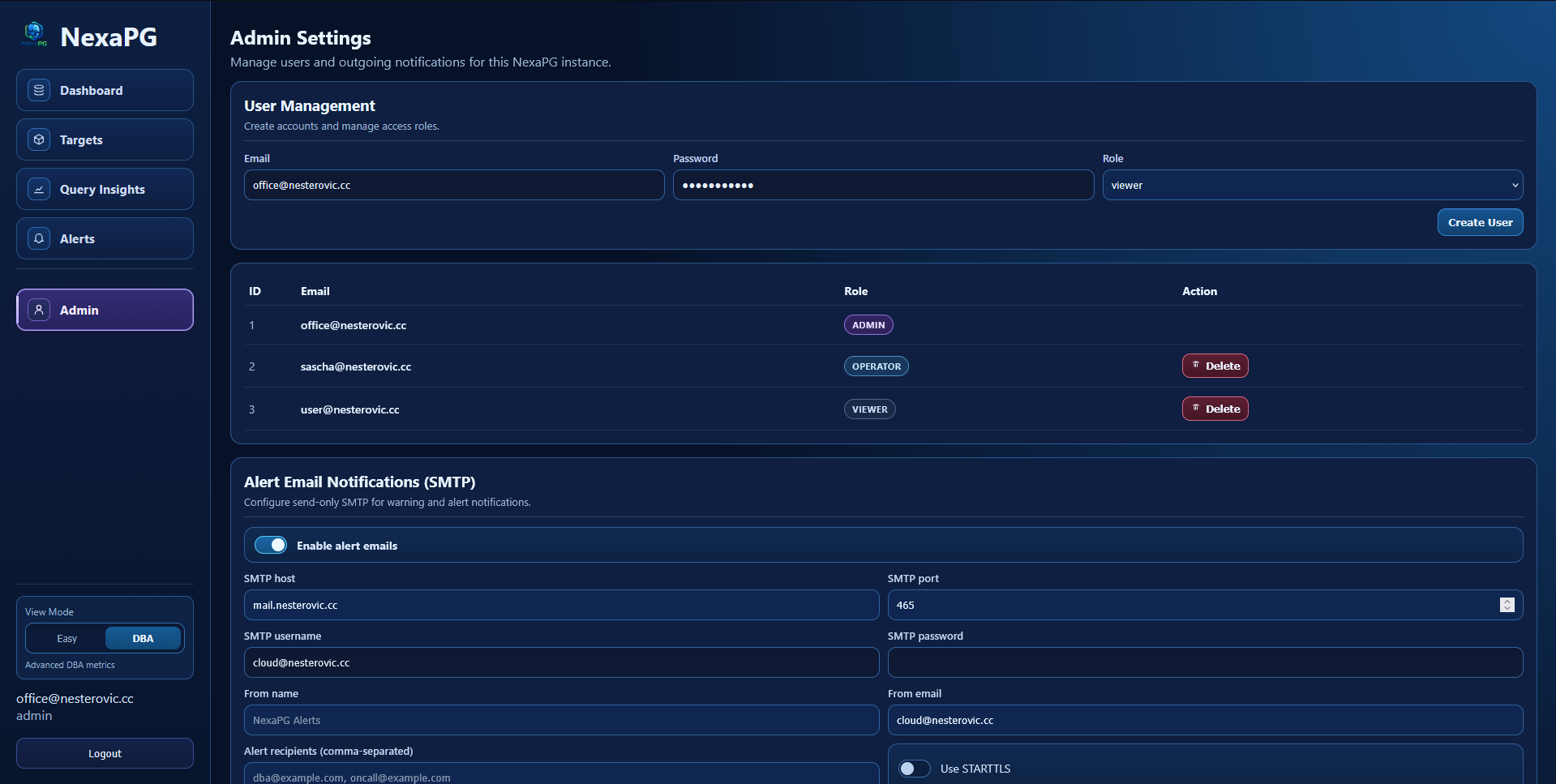

Admin Settings

Target Detail (DBA Mode)

Target Detail (Easy Mode)

Repository Layout

• backend/ FastAPI app, SQLAlchemy async models, Alembic migrations, collector services
• frontend/ React + Vite UI
• ops/ helper files/scripts
• docker-compose.yml full local stack
• .env.example complete environment template
• Makefile common commands

Prerequisites

• Docker Engine 24+
• Docker Compose v2+
• GNU Make (optional but recommended)
• Open host ports (or custom values in .env):
  • FRONTEND_PORT (default 5173)
  • BACKEND_PORT (default 8000)
  • DB_PORT (default 5433)

Optional:

• psql for manual DB checks

Quick Deploy (Prebuilt Images)

If you only want to run NexaPG from published Docker Hub images, use the bootstrap script:

mkdir -p /opt/NexaPG
cd /opt/NexaPG
wget -O bootstrap-compose.sh https://git.nesterovic.cc/nessi/NexaPG/raw/branch/main/ops/scripts/bootstrap-compose.sh
chmod +x bootstrap-compose.sh
./bootstrap-compose.sh

This downloads:

• docker-compose.yml
• .env.example
• Makefile

Then:

# generate JWT secret
python -c "import secrets; print(secrets.token_urlsafe(64))"
# generate Fernet encryption key
python -c "from cryptography.fernet import Fernet; print(Fernet.generate_key().decode())"
# put both values into .env (JWT_SECRET_KEY / ENCRYPTION_KEY)
# note: .env is auto-created by bootstrap if it does not exist
make up

Manual download alternative:

mkdir -p /opt/NexaPG
cd /opt/NexaPG
wget https://git.nesterovic.cc/nessi/NexaPG/raw/branch/main/docker-compose.yml
wget https://git.nesterovic.cc/nessi/NexaPG/raw/branch/main/.env.example
wget https://git.nesterovic.cc/nessi/NexaPG/raw/branch/main/Makefile
cp .env.example .env

make up pulls nesterovicit/nexapg-backend:latest and nesterovicit/nexapg-frontend:latest, then starts the stack.

Open the application:

• Frontend: http://<SERVER_IP>:<FRONTEND_PORT>
• API base: http://<SERVER_IP>:<BACKEND_PORT>/api/v1
• OpenAPI: http://<SERVER_IP>:<BACKEND_PORT>/docs

Initial admin bootstrap user (created from .env if missing):

• Email: value from INIT_ADMIN_EMAIL
• Password: value from INIT_ADMIN_PASSWORD

Make Commands

make up        # pull latest images and start all services
make down      # stop all services
make logs      # follow compose logs
make migrate   # optional/manual: run alembic upgrade head in backend container

Note: Migrations run automatically when the backend container starts (entrypoint.sh).

Configuration Reference (.env)

Application

Variable	Description
APP_NAME	Application display name
ENVIRONMENT	Runtime environment (dev, staging, prod, test)
LOG_LEVEL	Backend log level (DEBUG, INFO, WARNING, ERROR)

Core Database

Variable	Description
DB_NAME	Core metadata database name
DB_USER	Core database user
DB_PASSWORD	Core database password
DB_PORT	Host port mapped to internal PostgreSQL 5432

Backend / Security

Variable	Description
BACKEND_PORT	Host port mapped to backend container port 8000
JWT_SECRET_KEY	JWT signing secret
JWT_ALGORITHM	JWT algorithm (default HS256)
JWT_ACCESS_TOKEN_MINUTES	Access token lifetime in minutes
JWT_REFRESH_TOKEN_MINUTES	Refresh token lifetime in minutes
ENCRYPTION_KEY	Fernet key for target credentials and SMTP password encryption
CORS_ORIGINS	Allowed CORS origins (comma-separated or * for dev only)
POLL_INTERVAL_SECONDS	Collector polling interval
INIT_ADMIN_EMAIL	Bootstrap admin email
INIT_ADMIN_PASSWORD	Bootstrap admin password

Alert Noise Tuning

Variable	Description
ALERT_ACTIVE_CONNECTION_RATIO_MIN_TOTAL_CONNECTIONS	Minimum total sessions required before evaluating active-connection ratio
ALERT_ROLLBACK_RATIO_WINDOW_MINUTES	Time window for rollback ratio evaluation
ALERT_ROLLBACK_RATIO_MIN_TOTAL_TRANSACTIONS	Minimum transaction volume before rollback ratio is evaluated
ALERT_ROLLBACK_RATIO_MIN_ROLLBACKS	Minimum rollback count before rollback ratio is evaluated

Frontend

Variable	Description
FRONTEND_PORT	Host port mapped to frontend container port 80

Core Functional Areas

Targets

• Create, list, edit, delete targets
• Test target connection before save
• Optional "discover all databases" mode (creates one monitored target per discovered DB)
• Configure SSL mode per target
• Toggle pg_stat_statements usage per target
• Assign responsible users (target owners)

Target Details

• Database Overview section with instance, role, uptime, size, replication, and core metrics
• Metric charts with range selection and live mode
• Locks and activity tables

Query Insights

• Uses collected pg_stat_statements data
• Ranking and categorization views
• Search and pagination
• Disabled automatically for targets where query insights flag is off

Alerts

• Warning and alert severity split
• Expandable alert cards with details and recommended actions
• Custom alert definitions (SQL + thresholds)
• Real-time refresh and in-app toast notifications

Admin Settings

• User management (RBAC)
• SMTP settings for outgoing alert mails:
  • enable/disable
  • host/port/auth
  • STARTTLS / SSL mode
  • from email + from name
  • recipient test mail

Service Information

• Sidebar entry for runtime and system details
• Displays current version, latest known version, uptime, host, and platform
• "Check for Updates" against the latest published release in the official upstream repository (git.nesterovic.cc/nessi/NexaPG)
• Version/update source are read-only in UI (maintainer-controlled in code/release flow)
• Local displayed version is code-defined in backend/app/core/config.py (NEXAPG_VERSION) and not configurable via .env

Target Owner Notifications

Email alert routing is target-specific:

• only users assigned as owners for a target receive that target's alert emails
• supports multiple owners per target
• notification sending is throttled to reduce repeated alert spam

API Overview

Health

• GET /api/v1/healthz
• GET /api/v1/readyz

Auth

• POST /api/v1/auth/login
• POST /api/v1/auth/refresh
• POST /api/v1/auth/logout
• GET /api/v1/me

Targets

• GET /api/v1/targets
• POST /api/v1/targets
• POST /api/v1/targets/test-connection
• GET /api/v1/targets/{id}
• PUT /api/v1/targets/{id}
• DELETE /api/v1/targets/{id}
• GET /api/v1/targets/{id}/owners
• PUT /api/v1/targets/{id}/owners
• GET /api/v1/targets/owner-candidates
• GET /api/v1/targets/{id}/metrics
• GET /api/v1/targets/{id}/locks
• GET /api/v1/targets/{id}/activity
• GET /api/v1/targets/{id}/top-queries
• GET /api/v1/targets/{id}/overview

Alerts

• GET /api/v1/alerts/status
• GET /api/v1/alerts/definitions
• POST /api/v1/alerts/definitions
• PUT /api/v1/alerts/definitions/{id}
• DELETE /api/v1/alerts/definitions/{id}
• POST /api/v1/alerts/definitions/test

Admin

• GET /api/v1/admin/users
• POST /api/v1/admin/users
• PUT /api/v1/admin/users/{user_id}
• DELETE /api/v1/admin/users/{user_id}
• GET /api/v1/admin/settings/email
• PUT /api/v1/admin/settings/email
• POST /api/v1/admin/settings/email/test

Service Information

• GET /api/v1/service/info
• POST /api/v1/service/info/check

API Error Format

All 4xx/5xx responses use a consistent JSON payload:

{
  "code": "validation_error",
  "message": "Request validation failed",
  "details": [],
  "request_id": "c8f0f888-2365-4b86-a5de-b3f0e9df4a4b"
}

Common fields:

• code: stable machine-readable error code
• message: human-readable summary
• details: optional extra context (validation list, debug context, etc.)
• request_id: request correlation ID (also returned in X-Request-ID header)

Common error codes:

• bad_request (400)
• unauthorized (401)
• forbidden (403)
• not_found (404)
• conflict (409)
• validation_error (422)
• target_unreachable (503)
• internal_error (500)

pg_stat_statements Requirement

Query Insights requires pg_stat_statements on the monitored target:

CREATE EXTENSION IF NOT EXISTS pg_stat_statements;

If unavailable, disable it per target in target settings.

Reverse Proxy / SSL Guidance

For production, serve frontend and API under the same public origin via reverse proxy.

• Frontend URL example: https://monitor.example.com
• Proxy API path /api/ to backend service
• Route /api/v1 to the backend service

This prevents mixed-content and CORS issues.

PostgreSQL Compatibility Smoke Test

Run manually against one DSN:

PG_DSN='postgresql://postgres:postgres@127.0.0.1:5432/compatdb?sslmode=disable' \
python backend/scripts/pg_compat_smoke.py

Run with DSN candidates (CI style):

PG_DSN_CANDIDATES='postgresql://postgres:postgres@postgres:5432/compatdb?sslmode=disable,postgresql://postgres:postgres@127.0.0.1:5432/compatdb?sslmode=disable' \
python backend/scripts/pg_compat_smoke.py

Troubleshooting

Backend container keeps restarting during make migrate

Most common reason: failed migration. Check logs:

docker compose logs --tail=200 backend
docker compose logs --tail=200 db

CORS or mixed-content issues behind SSL proxy

• Ensure proxy forwards /api/ (or /api/v1) to backend
• Set correct frontend origin(s) in CORS_ORIGINS

rejected SSL upgrade for a target

Target likely does not support SSL with current settings. Set target sslmode to disable (or correct SSL config on target DB).

Query Insights empty

• Check target has Use pg_stat_statements enabled
• Verify extension exists on target (CREATE EXTENSION ...)

Security Notes

• No secrets hardcoded in repository
• Passwords hashed with Argon2
• Sensitive values encrypted at rest (Fernet)
• RBAC enforced on protected endpoints
• Audit logs for critical actions
• Collector error logging includes throttling to reduce repeated noise
